Head Brackets

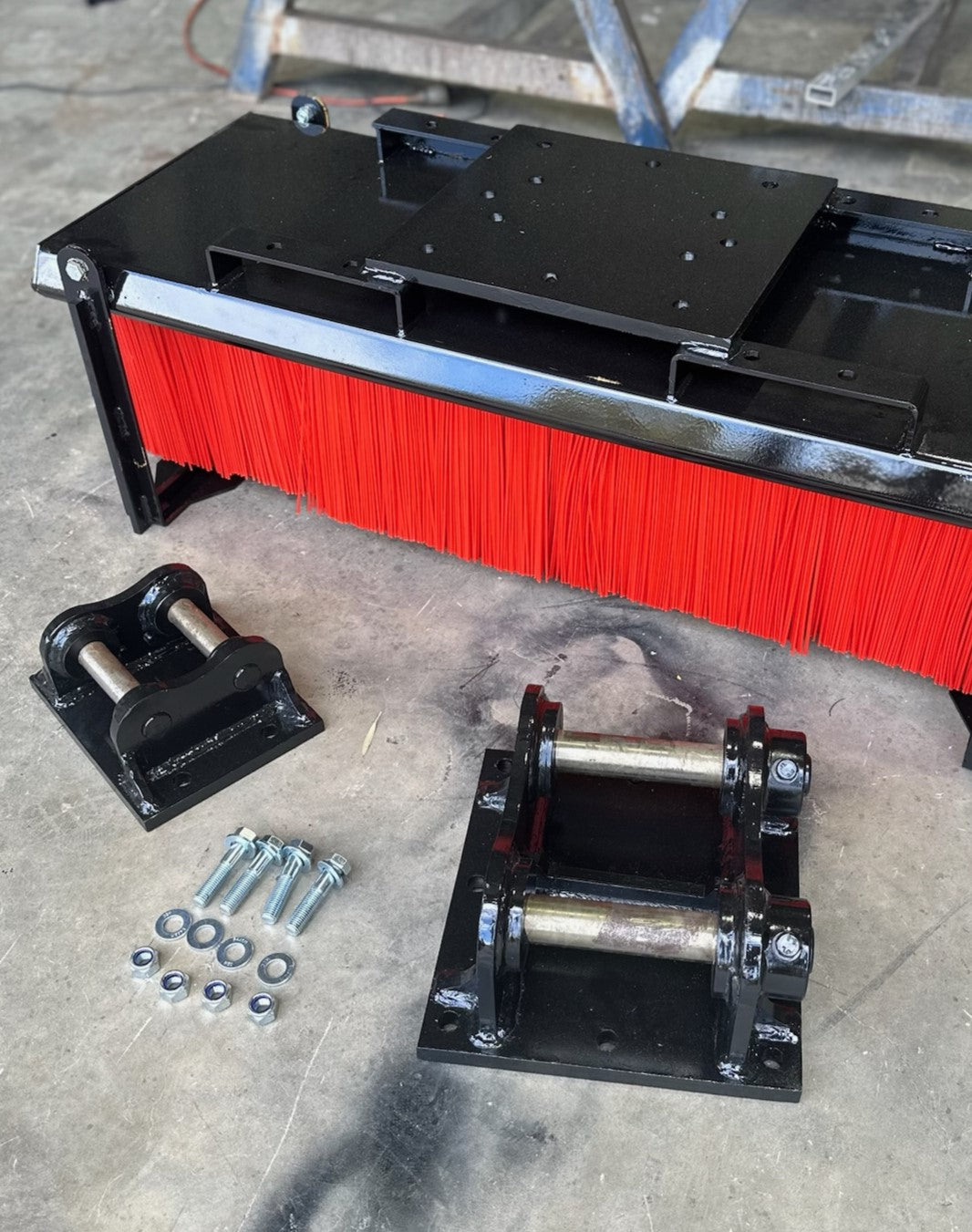

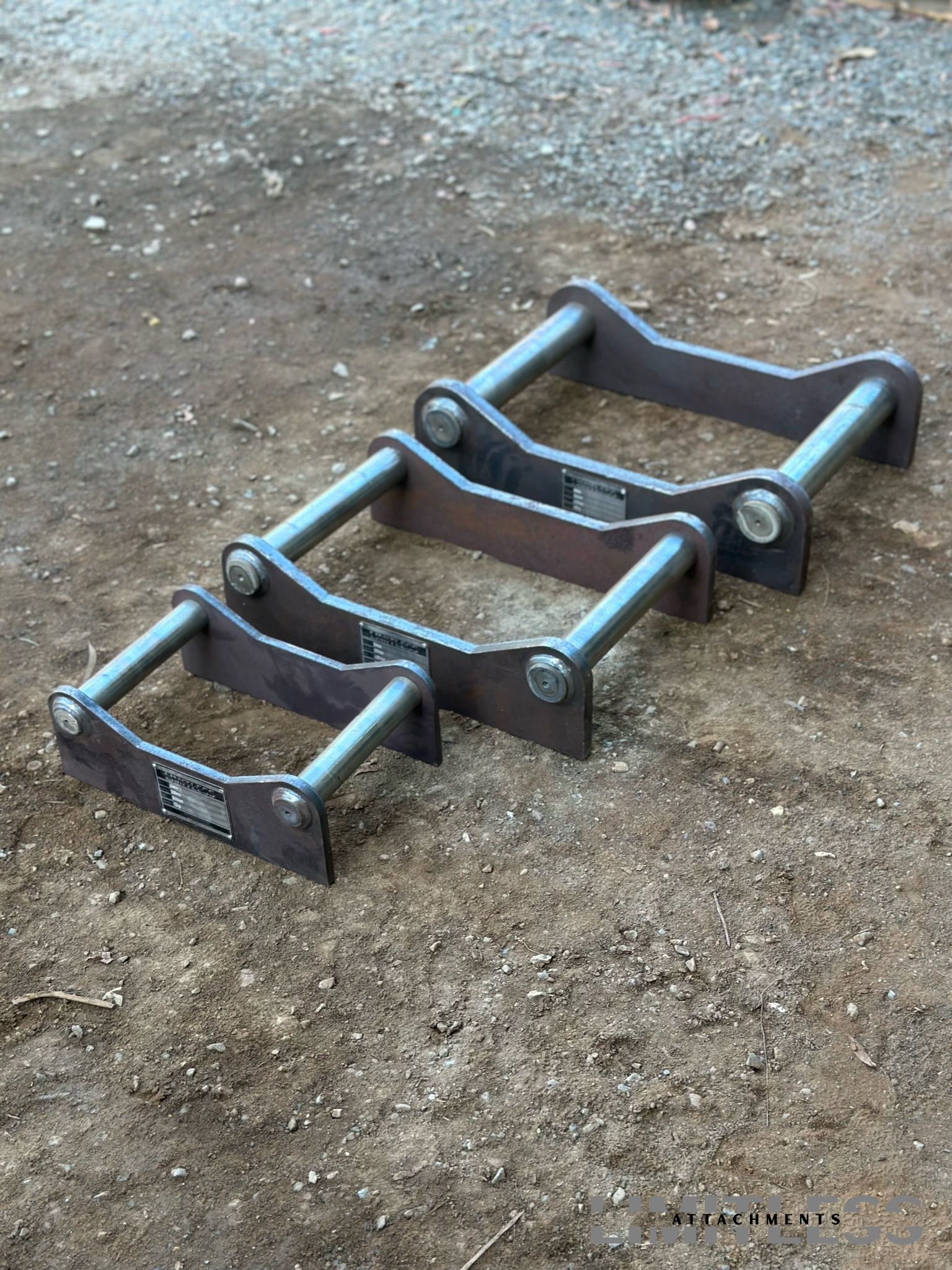

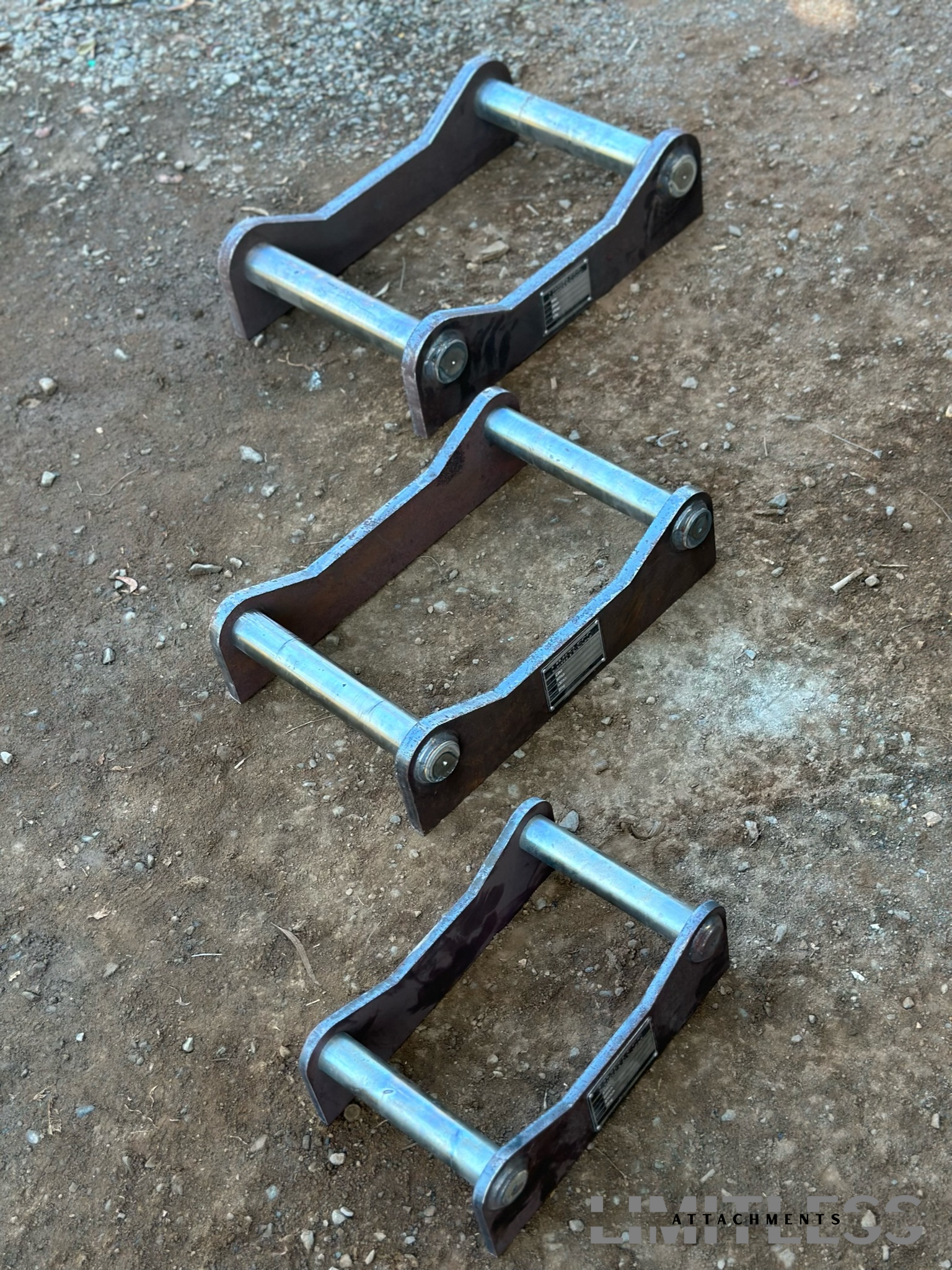

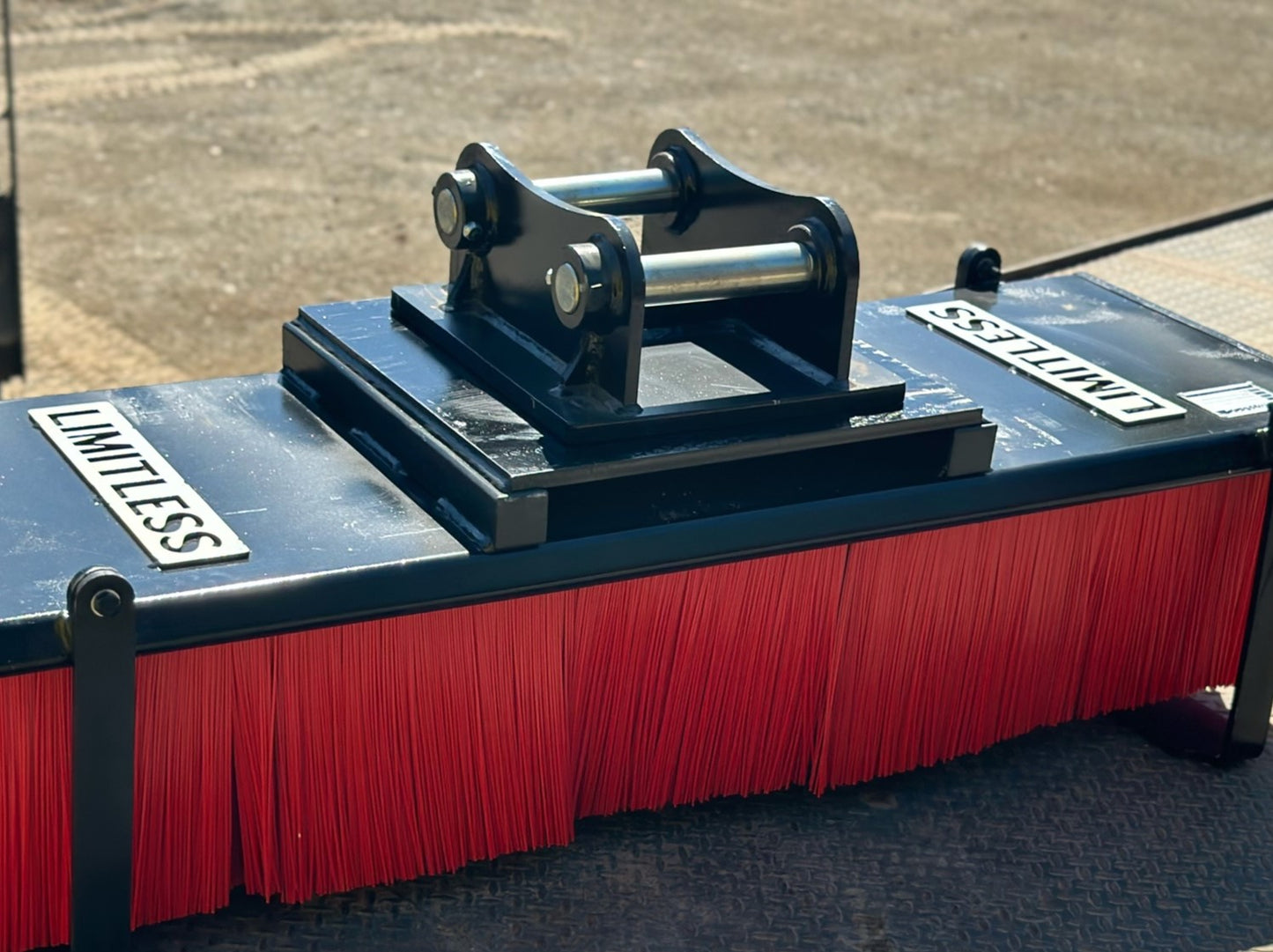

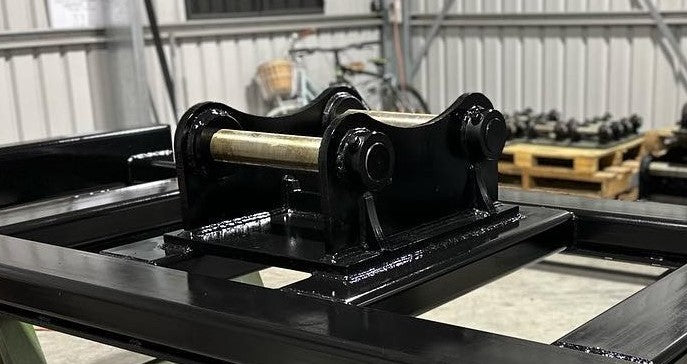

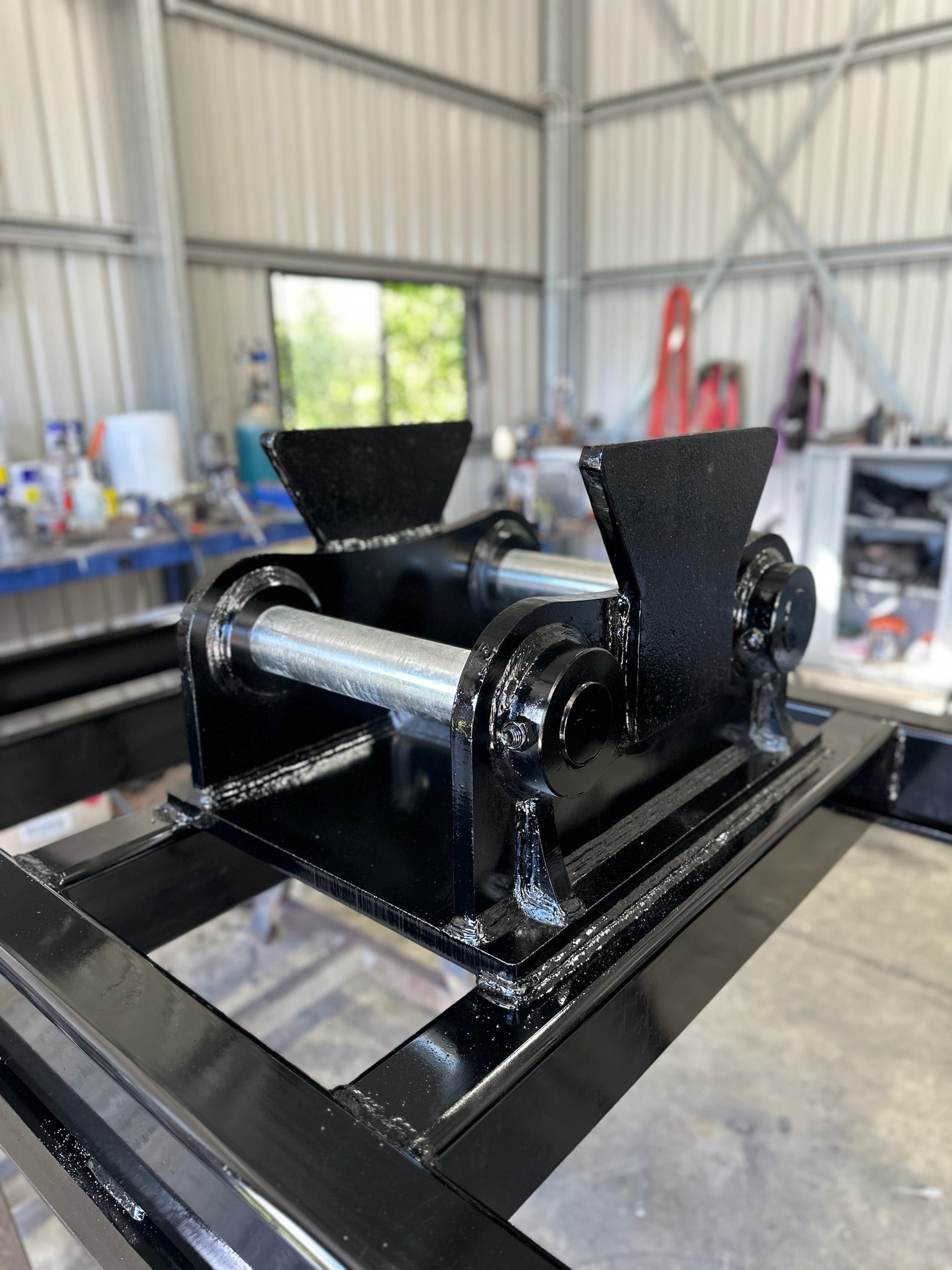

Our Limitless universal head brackets will suit most excavators and can be attached to almost every custom attachment with a flat suface. Common attachments our head brackets have been used on are brooms, spreader bars, forks, grader blades, jibs and some hydraulic attachments. We stock both normal and S Style head brackets, and can attach them to a range of custom products.

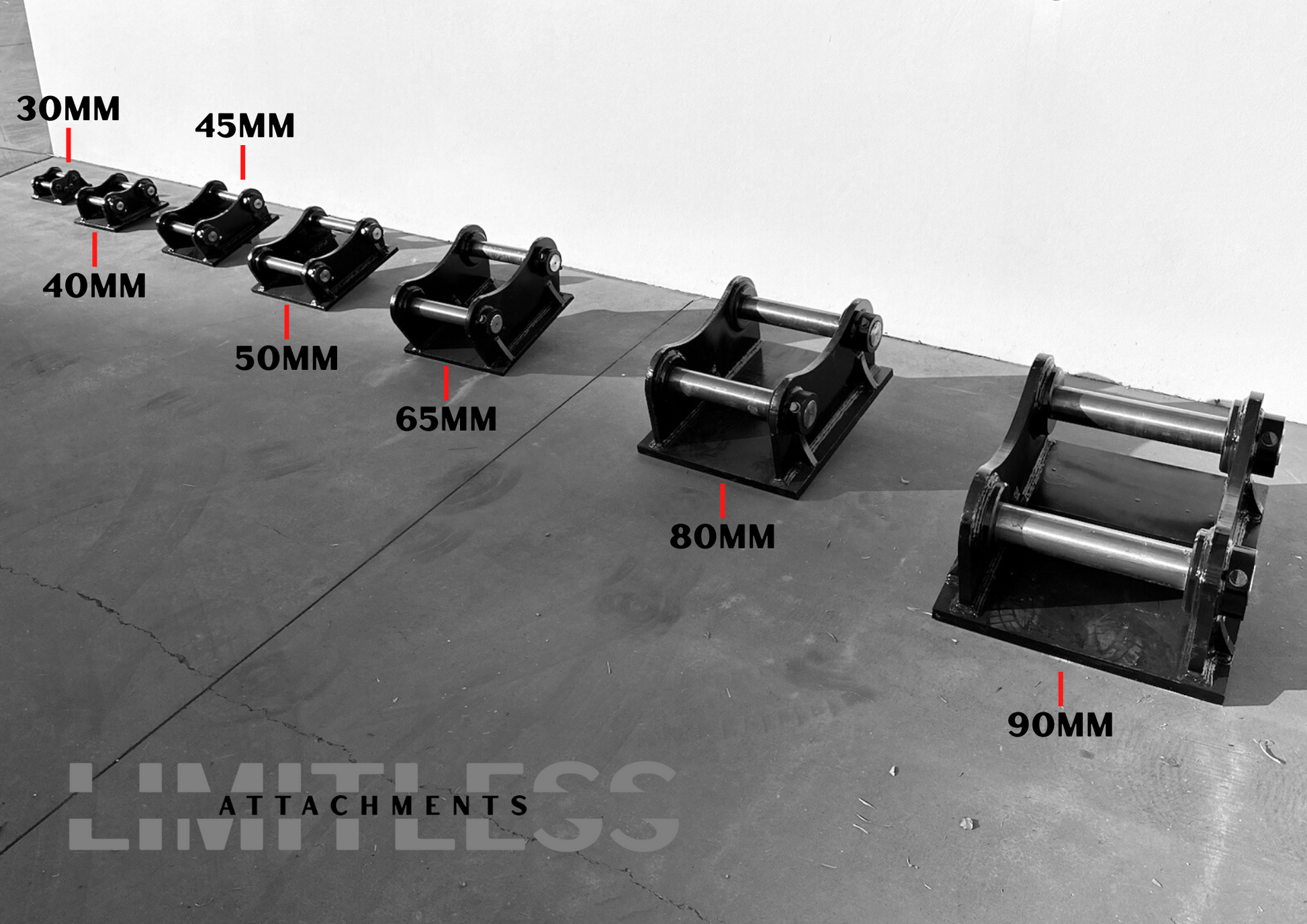

• 1-1.7T - 30mm pins, 120mm centre, 128mm ears.
• 2-2.7T - 35mm pins, 185mm centre, 150mm ears.

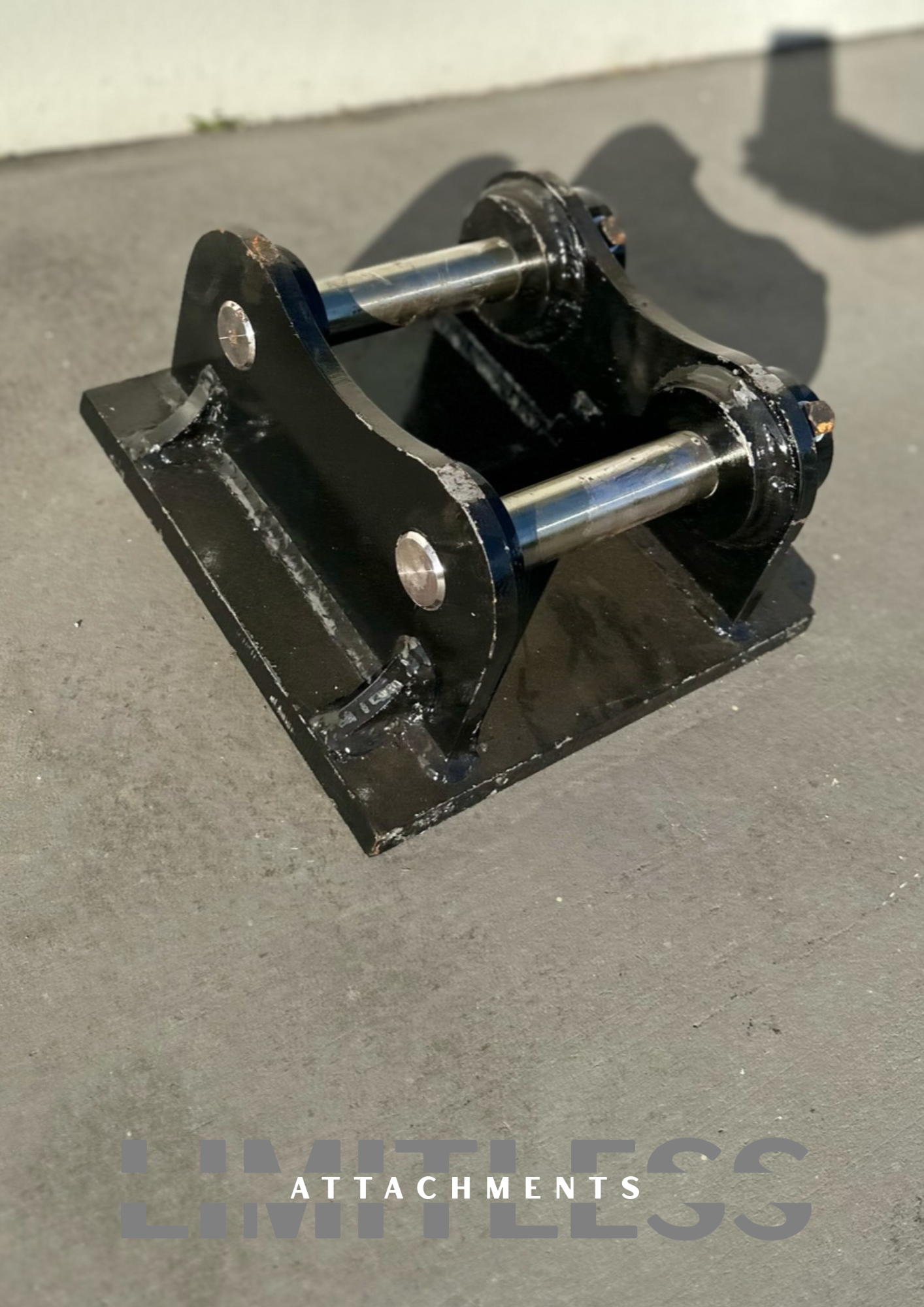

• 3-4T - 40mm pins, 180mm centre, 155mm ears OR S-Style S40

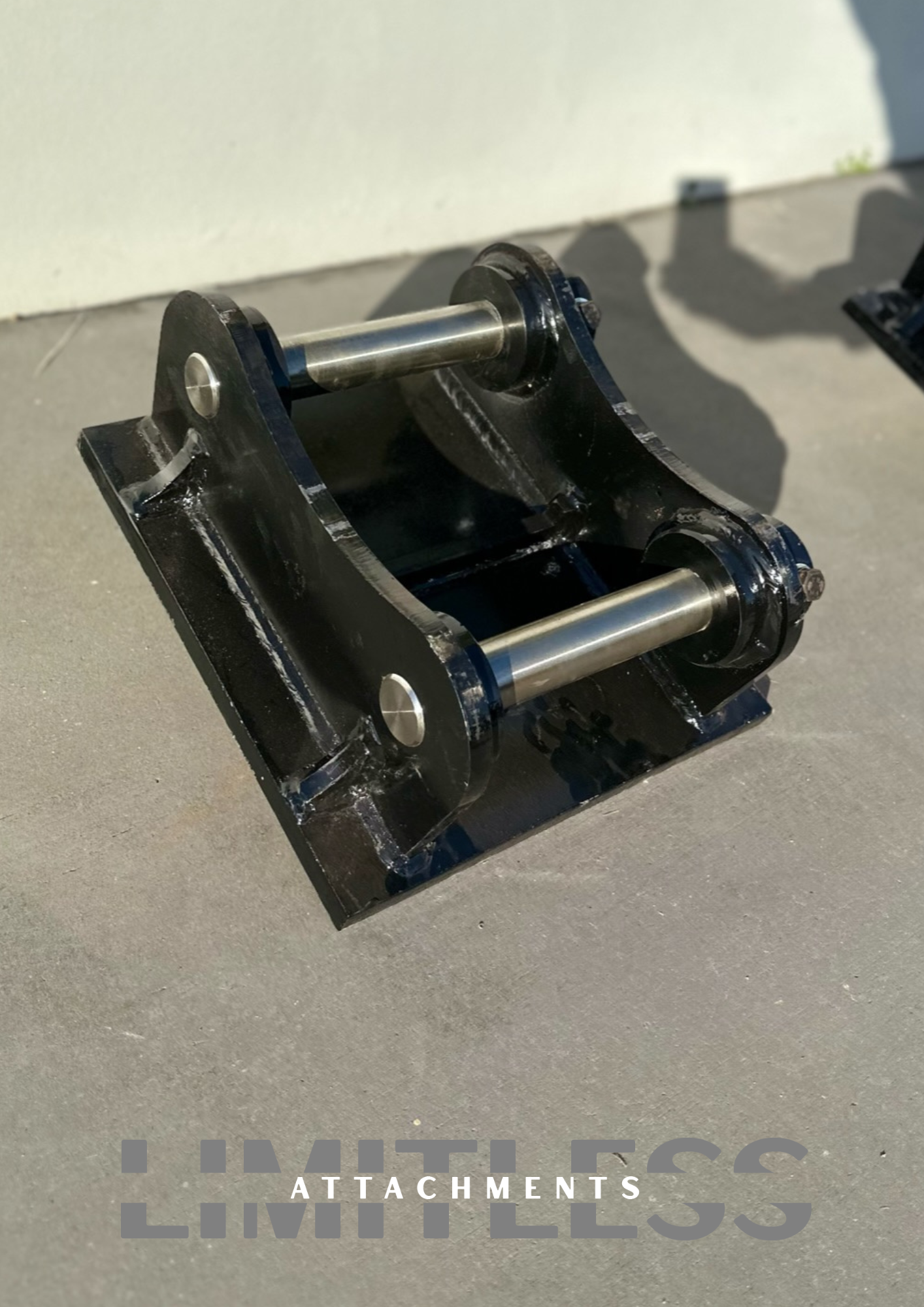

• 4.5-6T - 45mm pins, 250mm centre, 165mm ears OR S-Style S45.

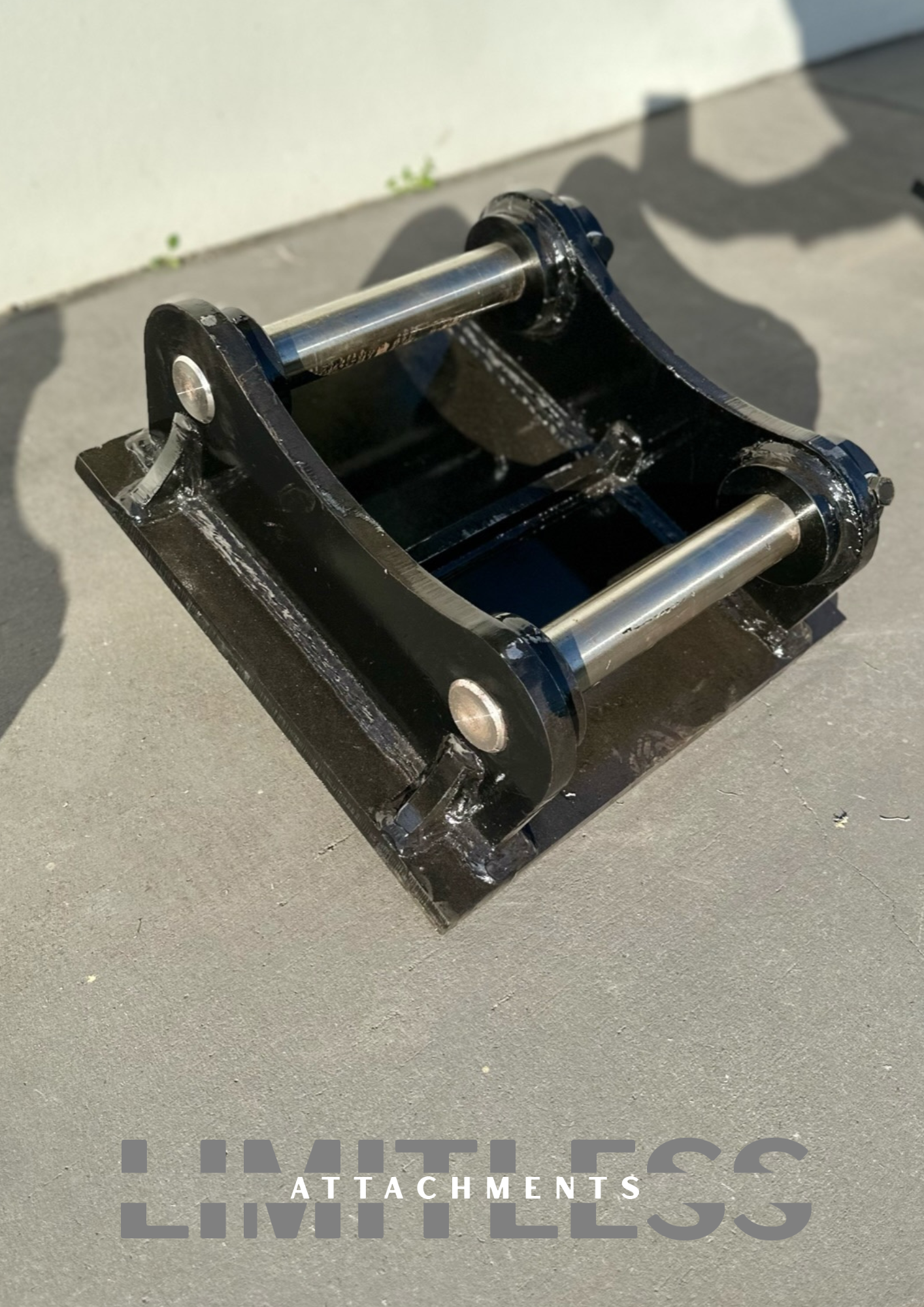

• 8-9T - 50mm pins, 310mm centre, 250mm ears OR S-Style S50.

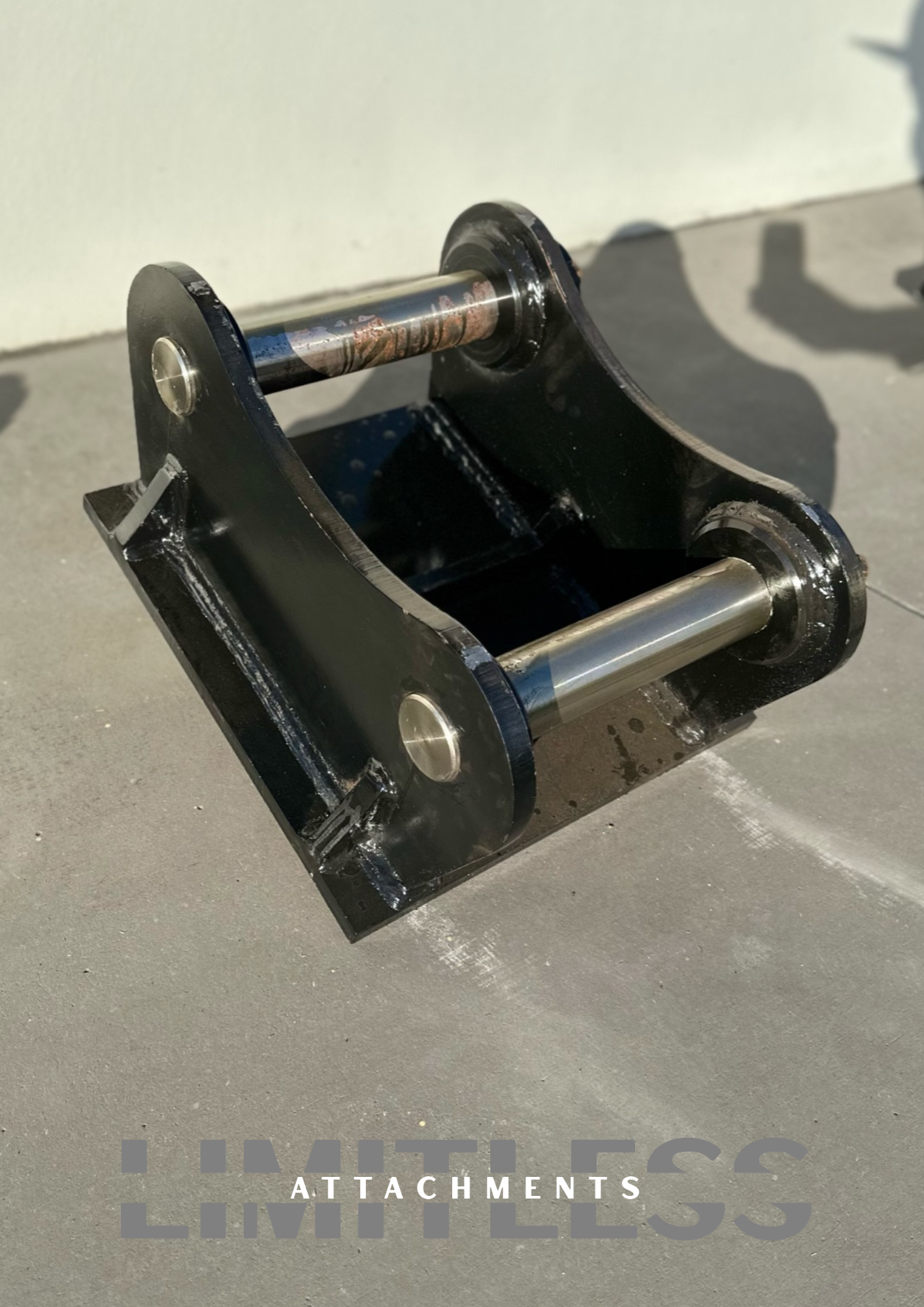

• 12-16T - 65mm pins, 380mm centre, 270mm ears OR S-Style S60.

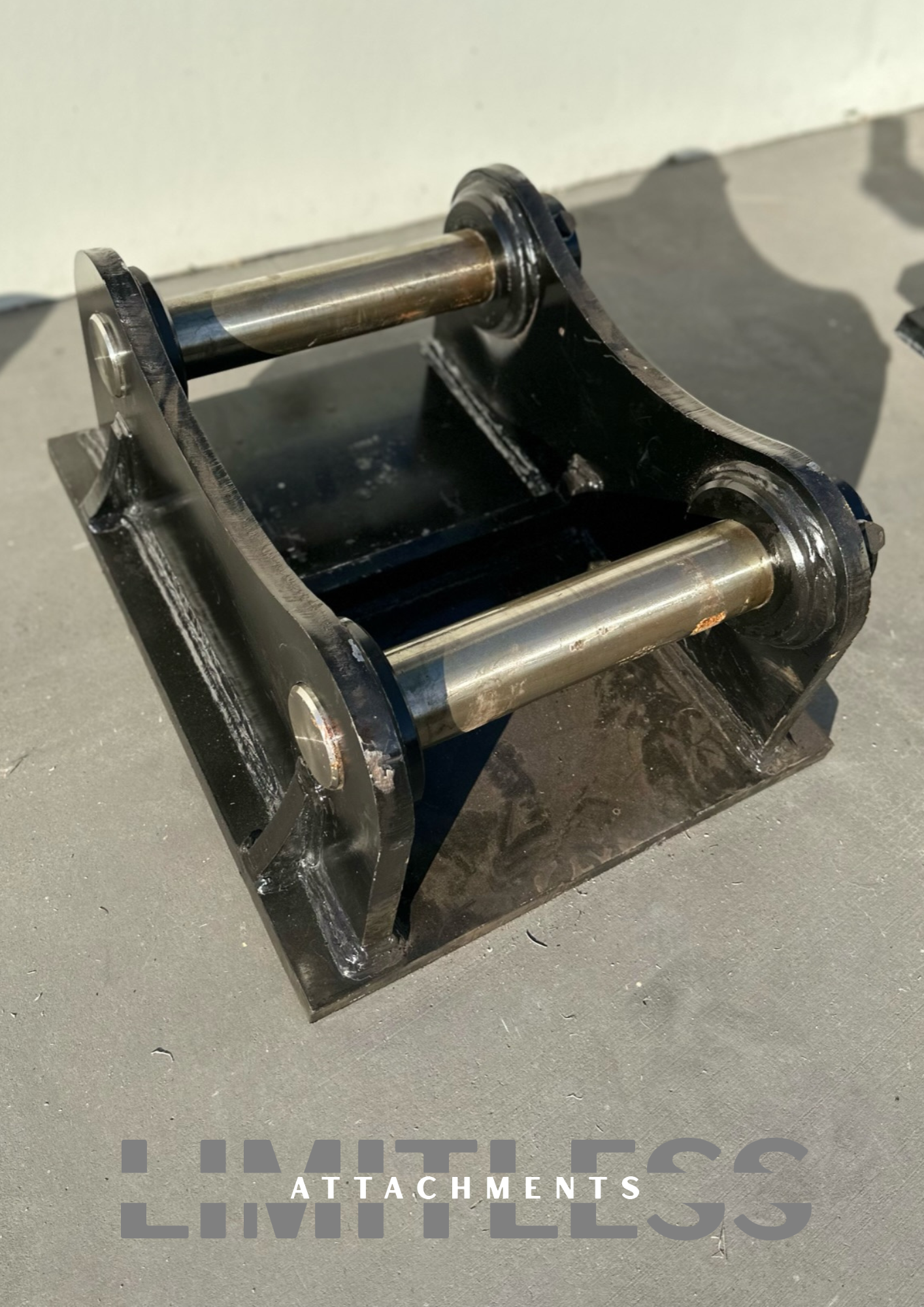

• 18-25T - 80mm pins, 475mm centre, 350mm ears.

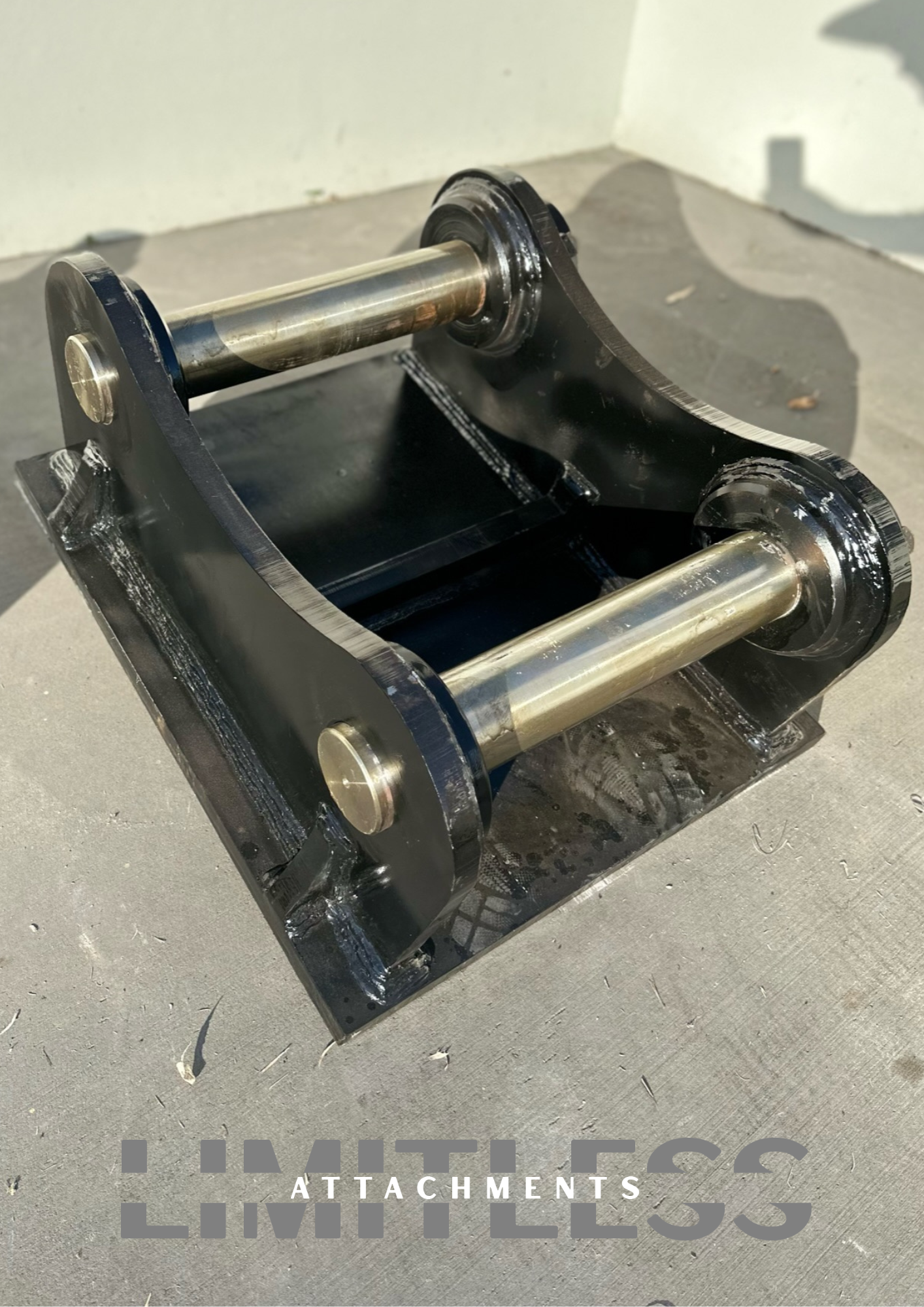

• 30-40T - 90mm pins, 485mm centre, 450mm ears.
• 40-50T - 100mm pins, 560mm centre, 480mm ears.

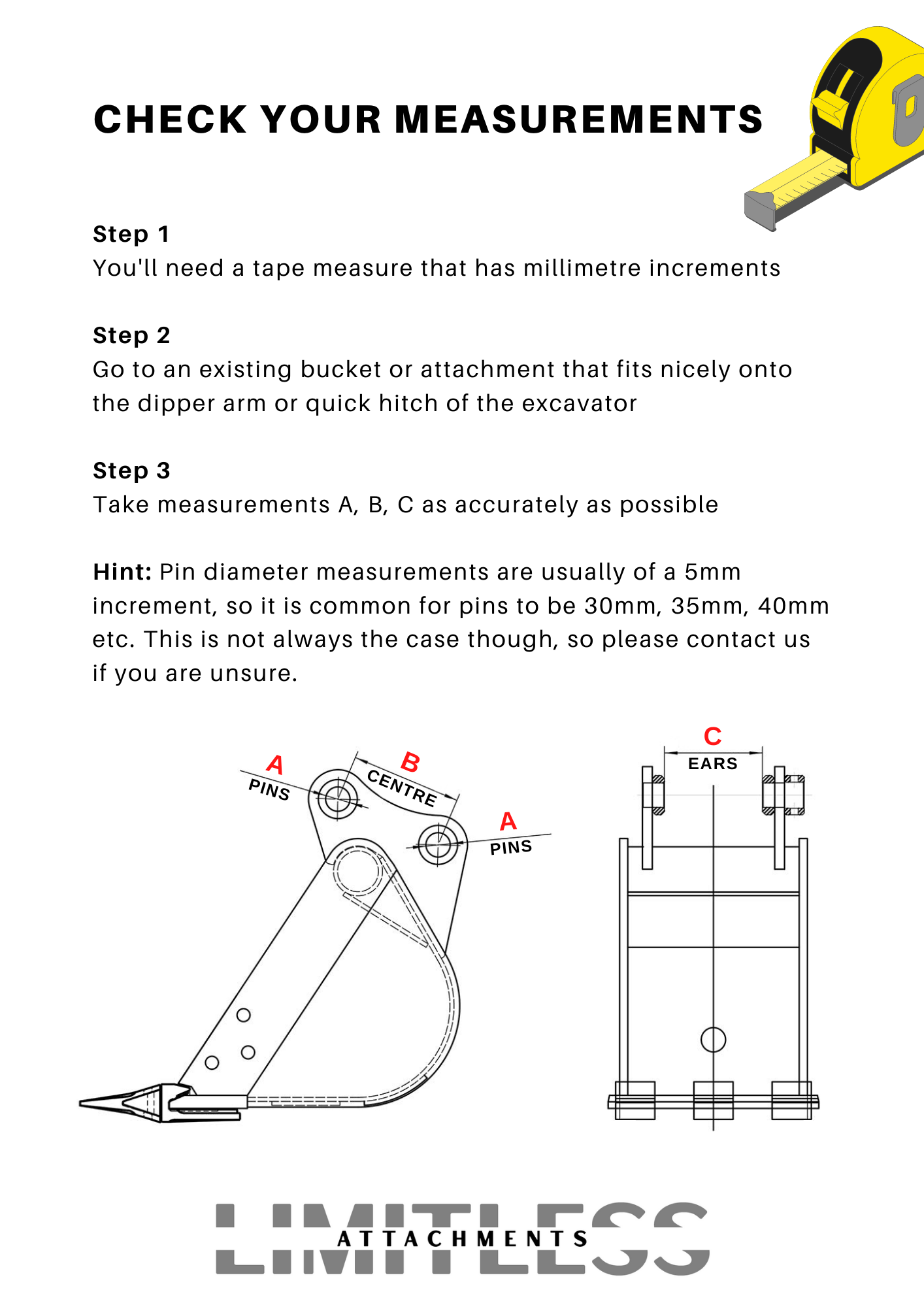

If you're unsure on how to correctly measure your machine attachments, please refer to the diagram pictured.

Feel free to reach out via the form below if you have any further questions.

Contact us now, all stock can be collected from our Gold Coast warehouse or we ship Australia wide.
